Guitar/Stereo Line Level Effects Interface
.jpg)
.jpg)

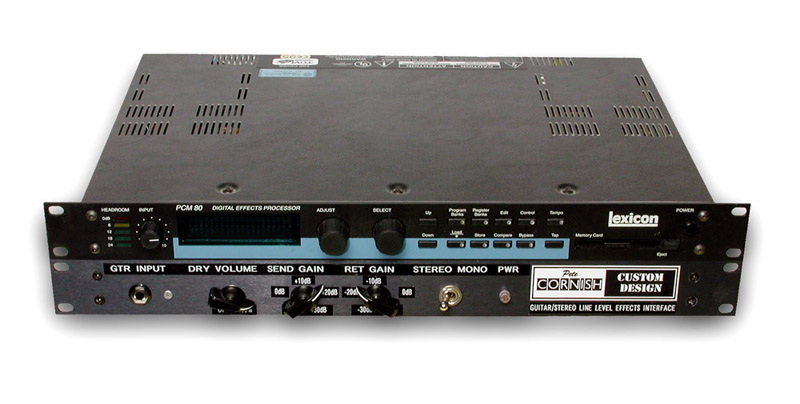

This unit is designed to be used with a Studio Line Level Stereo
Effects unit (like the Lexicon PCM80 shown) and still provide Guitar level
signal, in mono or Stereo, to one or more regular guitar amps without the
inherent problems usually associated with hum loops/wrong signal levels/hiss and
other noises. It features one Hi Impedance Guitar input, a Dry Volume control,
Effects Send with a gain range of +30dB/-10dB, Stereo Effects Return with a gain

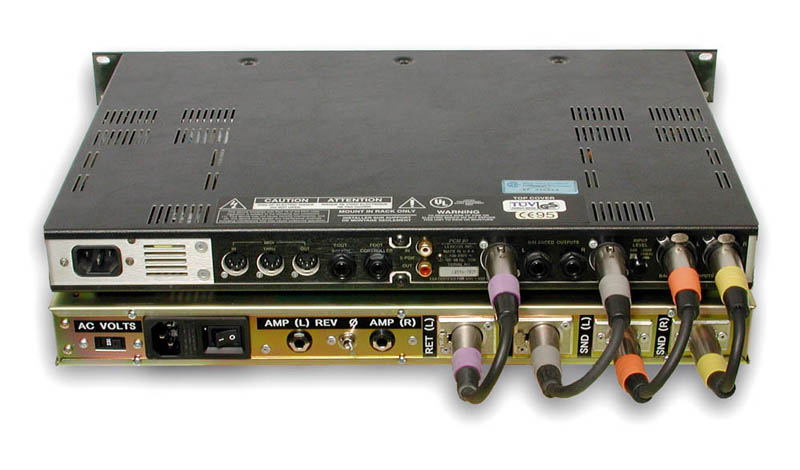

range of +10dB/-30dB, a Mono/Stereo selector, two Ground Lifted amp feeds one
with Phase Reverse and Ground Lift switch. Fully stabilized ac/dc power supplies
suitable for 115/230VAC 50/60Hz.
Although a single stereo channel is shown, any number of separate line level
effects units can be incorporated in a larger unit.
